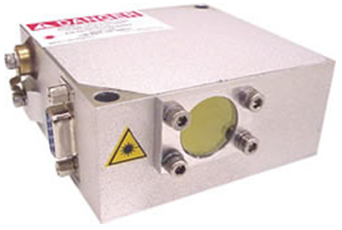

Collimated Laser Diodes
Optton collimated laser diodes offer high power with superior beam quality. These compact devices deliver output beam power ranging from a few watts to 3kW having single wavelength with divergence angles as low as 3mrad. The low-powered devices are conductively cooled and ready for mounting on a heat sink. The high power devices are normally water-cooled.

Apollo's water cooled devices are robust. There is no need to usede-ion water or ultra-filtration. The collimated laser beam can easily be focused or combined with conventional optics to provide the exact spot size or geometry needed. Apollo's collimated laser diodes provide ideal beam sources for system integration and offer the simplest, easiest way to deliver high-power laser light to a variety of applications.
  • High power and superior beam quality
  • Polarized beam output
  • Low divergence (>3mrad)
  • Power output up to 1.5kW with single wavelength
  • Single wavelength or multi-wavelength output
  • Compact design
  • Maintenance free
  • Flexible for system integration
Typical Products and Specifications
  C32-XXX-0 C35-XXX-0 C60-XXX-0 C150-XXX-0 C550-XXX-0 C1000-XXX-0
Output Power 32 W 35 W 60 W 150 W 550 W 1000 W
Spectral Width (FWHM) 3-4 nm 3-4 nm 3-4 nm 4-5 nm 4-5 nm 4-5 nm
Wavelength Shift 0.27 nm/ oC 0.27 nm/ oC 0.27 nm/ oC 0.27 nm/ oC 0.27 nm/ oC 0.27 nm/ oC
Divergence (FWHM) 3x3 mrad 4x4 mrad 4x4 mrad 4x4 mrad 4x4 mrad 4x4 mrad
Beam Dimensions 11x8 mm 11x11 mm 8x16 mm 16x22 mm 33x32 mm 32x32 mm
Operating Current <50 A <50 A <50 A <50 A <50 A> <90 A
Threshold Current 8 A 8 A 8 A 10 A 10 A 7 A
Operation Voltage <2 V <2 V <4 V <8 V <40 V <40 V
Reverse Voltage 0 V 0 V 0 V 0 V 0 V 0 V
Cooling passive passive water water water water
Operation Temperature 10-30 oC 10-30 oC 10-30 oC 10-30 oC 10-30 oC 28-30 oC
Storage Temperature -10-60 oC -10-60 oC -10-60 oC -10-60 oC -10-60 oC -10-60 oC
Package Thermal Resistance 0.7 oC/W 0.7 oC/W 0.7 oC/W 0.7 oC/W 0.7 oC/W 1.0 oC/W


>10,000 hrs >10,000 hrs >10,000 hrs >10,000 hrs >10,000 hrs >10,000 hrs
We also offer other models not listed above. For more information, please contact us with a model number of your choice.
Model Number Breakdown (CY-XXX-0)
C:Model Type: C = Collimated
Y:Output Power (W): Up to 3kW
XXX:Wavelength (nm)
*Standard: 808, 915, 940, or 980 nm
*Non-standard available. Please inquire.

0:No Fiber Output
In addition to our standard designs, Apollo Instruments offers many existing design modifications that allow for a high degree of product customization. Apollo Instruments also supplies a variety of optical options, such as low aberration focusing and/or collimation assemblies, mirrors, filters, spatial filters, and other accessories. Please inquire for further information if these options or other features can better help us meet your needs.

  • Pinhole Spatial Filter
Stray light can be removed from collimated laser modules without changing the polarization, which results in a cleaner focal spot.
  • Pilot Beam
A low power visible diode laser can be integrated into the laser modules for tracking the laser output. Power to the pilot beam is integrated in Apollo's laser diode driver. If a different laser is used, a 2.5V-3.5V DC power source should be supplied.

  • Operation Modes
These laser diode devices can be designed to operate with high-power output in QCW mode and other pulse modes. The short pulse option allows the module to produce very short (ns level) pulses as a stand-alone device.

  • Photodiode Sensor
A photodiode sensor placed in the module provides the user with a precise gauge of the laser status.

  • TEC Cooling Stage
Some products can be equipped with our TEC cooling stage. Together with a thermal electric cooler (TEC) and heat sink, the cooling stage allows precision cooling. Based on your need, the heat sink can be air-cooled or water-cooled.

  • Laser Diode Driver
The advanced circuit design and layout of the laser diode driver provides a low noise, highly stable output current. External digital modulation input allows precision control of the laser output for use in a variety of applications. A slow-start sequence as well as multiple shorting and current limiting circuits provides superior protection during operation of the laser diode.
Material processing
Cladding and coating
Medical therapeutics
Projection display
Metal cutting
Silicon wafer treatment
Fiber amplifiers
Metal heating
Fiber laser pumping
Metal welding
Hardening and heat treatment
Plastic cutting
Thermal surface treatment
Plastic welding
Wafer scribing
Powder fusio
